Multi–Agent Design Pattern
A collaborative architecture where multiple specialized AI agents work together — each owning a distinct role — to solve complex tasks that no single agent could handle reliably alone. Coordination, specialization, and oversight woven into one system.
Why Multiple Agents?
Single-agent systems hit a ceiling — limited context windows, no parallel execution, fragile at complex multi-domain tasks. The Multi-Agent Design Pattern solves this by distributing work across specialized agents that collaborate under an orchestrating layer.

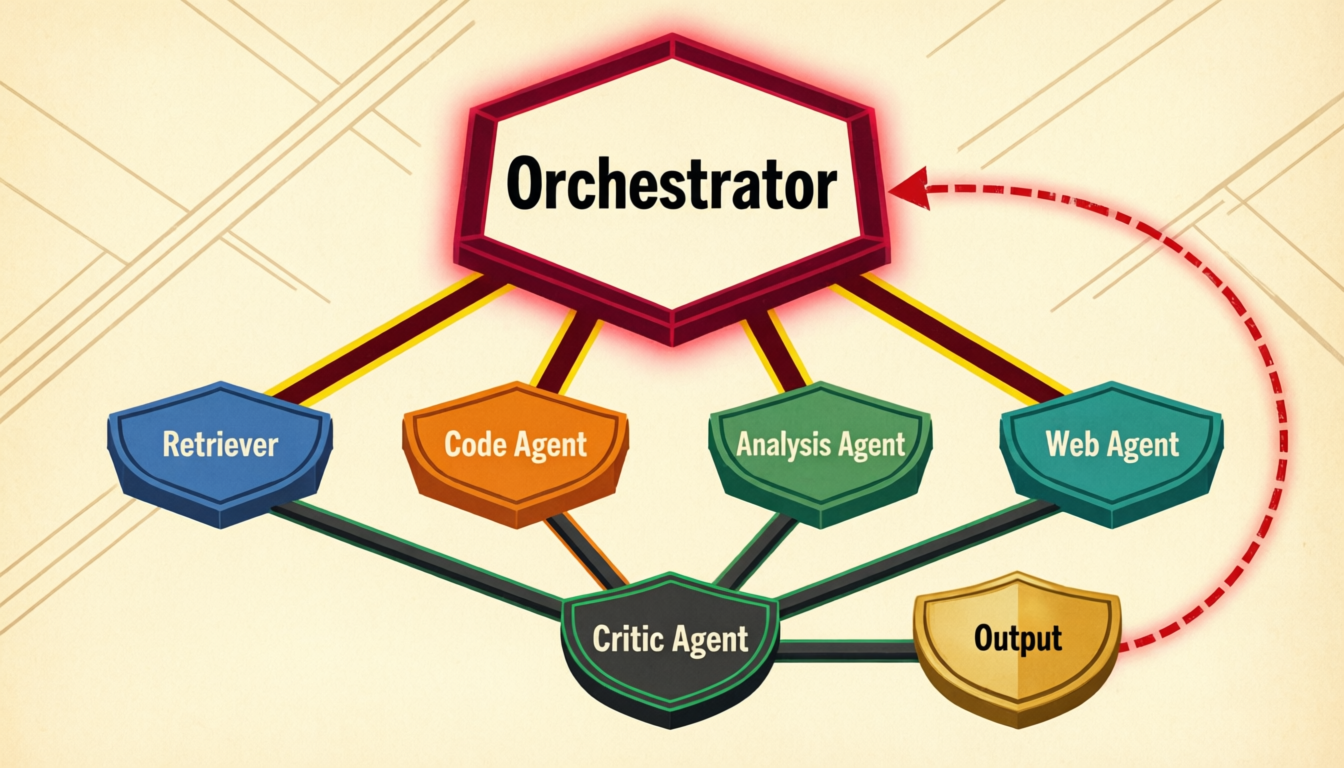

A central orchestrator decomposes tasks and delegates sub-tasks to specialized worker agents. Workers report results back. The orchestrator synthesizes the final answer. Clear chain of command.
Agents communicate laterally, sharing context and intermediate results without a central coordinator. Consensus-based decision making. Emergent behavior from local interactions.
Agents form a linear chain — each one processes input from the prior agent and passes enriched output to the next. Assembly-line style. Predictable, auditable, easy to debug.
Receives the top-level goal, decomposes it into sub-tasks, assigns agents, monitors progress, and synthesizes the final output.
Specialized executor — may handle retrieval, code generation, data analysis, or API calls. Reports structured results to the orchestrator.
Reviews other agents’ outputs for quality, accuracy, safety, and alignment with original intent. Triggers revision cycles when standards aren’t met.
Maintains shared state across agents — conversation history, intermediate results, retrieved documents, and agent decisions — as a shared scratchpad.
Policy enforcement. Intercepts agent outputs before delivery — checks for safety violations, hallucinations, PII, or harmful content.
Dedicated to fetching context from vector stores, APIs, SQL, or the web. Returns ranked, filtered, attributed documents to requesting agents.
Scores the quality of intermediate and final outputs using rubrics, LLM-as-judge techniques, or deterministic metrics. Drives re-planning.
Represents the human in the loop — surfaces requests for clarification, approval, or intervention at pre-defined decision gates in the workflow.
Orchestrator–Worker Flow
The canonical Multi-Agent pattern uses a hierarchical orchestrator–worker architecture. Here’s how a complex task flows from user input through parallel worker execution to a validated, synthesized output.
Four Multi-Agent Topologies
Different problem types call for different coordination structures. Here’s a deep look at four proven topologies — when to use each, and the trade-offs involved.
A single orchestrator manages a pool of worker agents. It decomposes the task, delegates sub-tasks, collects results, and synthesizes. Workers never communicate directly — all routing goes through the orchestrator. Best for: well-defined tasks with clear decomposition.
Strengths
- Clear control flow
- Easy to audit
- Parallel execution
Weaknesses
- Orchestrator bottleneck
- Single point of failure
- Rigid decomposition
Agents communicate laterally with no central coordinator. Each agent has a local view and shares its results with neighbors. Consensus emerges from negotiation. Best for: open-ended research, brainstorming, creative tasks where diverse perspectives add value.
Strengths
- No single bottleneck
- Resilient to failure
- Rich perspectives
Weaknesses
- Hard to debug
- Consensus is slow
- Token-expensive
Agents form a linear processing chain — each transforms or enriches the output of the prior agent. Like an assembly line: raw query → retrieved context → summarized facts → drafted answer → critic review → final output. Best for: content pipelines, document processing.
Strengths
- Predictable flow
- Easy to debug
- Low coordination cost
Weaknesses
- No parallelism
- Errors propagate
- Rigid structure
Combines orchestrator–worker with pipeline and peer elements. The orchestrator dynamically selects topology per sub-task: sequential for ordered steps, parallel for independent searches, peer for judgment-heavy decisions. Best for: enterprise-grade, multi-domain tasks.
Strengths
- Adaptive per task
- Maximum flexibility
- Optimal resource use
Weaknesses
- High complexity
- Hard to test
- Expensive to run
Multi-Agent Systems in Practice
Six production-grade scenarios where multi-agent collaboration dramatically outperforms single-agent approaches — with the exact agent roster for each.
User Request
“Generate a 10-page competitive intelligence report on the EV battery market in Southeast Asia.”
Agent Roster
- Orchestrator (plans structure)
- Web Retriever (news, filings)
- Data Analyst (market stats)
- Writer Agent (drafts sections)
- Critic Agent (fact-checks)
- Formatter Agent (layout)
Outcome
Each agent handles one stage in parallel. Report drafted, fact-checked, and formatted in one pipeline pass.
✓ 10-page report, 42 citations, 3h → 12minUser Request
“Review this patient’s lab results, imaging report, and medication history for differential diagnosis.”
Agent Roster
- Orchestrator (coordinates)
- Lab Analyst Agent
- Imaging Interpreter Agent
- Drug Interaction Agent
- Clinical Guidelines Agent
- Critic + Guard Agent
Outcome
Parallel analysis across all modalities. Orchestrator combines outputs into ranked differential diagnosis with contraindication flags.
✓ 4 differentials ranked, 2 contraindications flaggedUser Request
“Review this PR for bugs, security vulnerabilities, and style violations. Auto-fix what you can.”
Agent Roster
- Code Parser Agent
- Security Scanner Agent
- Style Linter Agent
- Bug Detector Agent
- Refactor Agent (auto-fix)
- Test Generator Agent
Outcome
Pipeline processes code sequentially: parse → scan → lint → detect → fix → test. Each agent hands enriched output to the next.
✓ 7 issues fixed, 12 test cases generatedUser Request
“Conduct full due diligence on TargetCo: financials, IP portfolio, regulatory risk, and litigation history.”
Agent Roster
- Deal Orchestrator
- Financial Analyst Agent
- IP & Patent Agent
- Regulatory Risk Agent
- Litigation Search Agent
- Critic + Human Proxy
Outcome
Parallel domain analysis. Orchestrator dynamically routes deeper follow-up based on each agent’s risk flags. Human proxy escalates key findings.
✓ 340-page VDR processed, 18 risk flags surfacedUser Request
“Build a 6-week ML curriculum for a student who knows Python but has no statistics background.”
Agent Roster
- Curriculum Designer Agent
- Pedagogy Expert Agent
- Content Sourcing Agent
- Assessment Builder Agent
- Learner Profile Agent
Outcome
Peer agents negotiate learning objectives, prerequisites, pacing, and content depth through structured debate. Emergent curriculum reflects all perspectives.
✓ 6-week plan, 42 lessons, 18 assessmentsUser Request
“ALERT: Anomalous lateral movement detected across 6 hosts. Investigate, contain, and report.”
Agent Roster
- SOC Orchestrator Agent
- Log Analysis Agent
- Threat Intel Agent
- Containment Agent
- Forensics Agent
- Human Proxy (CISO escalation)
Outcome
Parallel investigation and containment. Orchestrator sequences: investigate → isolate → analyze → report. Human proxy called for destructive actions.
✓ 6 hosts isolated in 4min, full IR reportHow Agents Talk to Each Other
The coordination mechanism between agents is as important as the agents themselves. Three primary communication patterns govern how agents share information and decisions.
Agents send structured messages to each other via a shared message bus or queue. Each message has a defined schema: sender, receiver, message type, payload, and priority.
TO: orchestrator
TYPE: result
PAYLOAD: {docs: […], confidence: 0.91}
All agents read and write to a common scratchpad — a structured context object containing task state, intermediate results, agent decisions, and retrieved documents. No direct messaging needed.
task_id: “abc123”,
sub_tasks: […],
results: {agent_A: …}
}
Agents post their outputs to a shared “blackboard.” Other agents read, critique, and update it. In debate mode, agents argue for their position until consensus is reached or a judge agent decides.
agent_A: “Answer is X”
agent_B: “Disagree — Y”
judge: “B is correct: …”
What Makes Multi-Agent Systems Hard
Multi-agent systems introduce coordination overhead and failure modes that don’t exist in single-agent setups. Understanding them up front is essential for production deployment.
| Challenge | Description | Severity | Mitigation Strategy |
|---|---|---|---|
| Context Fragmentation | Each agent has a limited context window. Full task context must be carefully sliced and re-assembled. Agents may miss critical information seen by other agents. | HIGH | Shared memory layer; structured context handoff schemas; summarization agents between steps. |
| Coordination Overhead | Orchestrators must manage agent state, retries, timeouts, and result aggregation. The coordination logic itself can become more complex than the task it’s managing. | HIGH | Use proven agent frameworks (LangGraph, AutoGen); separate orchestration logic from business logic. |
| Error Propagation | A hallucination or incorrect output from an upstream agent gets embedded into the shared context, causing downstream agents to build on faulty premises. | HIGH | Critic agent after every major step; structured output validation; agent output schemas with type checking. |
| Cost Escalation | Multiple LLM calls per task — across orchestrator, multiple workers, critic, and guard — can multiply token cost by 5–20x compared to a single-agent call. | MED | Use smaller models for simple sub-tasks; cache repeated retrievals; set token budgets per agent per task. |
| Deadlock / Infinite Loops | Agents waiting on each other’s outputs, or a revision loop that never converges (critic always rejects, worker always fails), can halt the system indefinitely. | MED | Maximum retry limits; timeout per agent; escalation to human proxy if loop count exceeded. |
| Observability Gap | Complex multi-agent runs are hard to debug. Which agent failed? Why? What was the shared state at the time? Traditional logging is insufficient. | MED | Full trace logging per agent action; LangSmith / W&B tracing; structured agent decision journals. |
| Agent Trust Boundaries | Should Worker Agent B trust the output of Worker Agent A without verification? Blind trust between agents can amplify errors. Zero trust adds latency. | LOW | Assign confidence scores to agent outputs; only fully trust outputs that have passed through the critic gate. |
